Giant Reign Advanced 1 2017 – M

CONVERSION RATING

*** Fair (light modifications and some extra parts needed)

Share on facebook
SHARE ON FACEBOOK

Conversion specs

Motor:
TYPE:
System voltage: 52v
Battery type: Down tube Bottle holder mount

Bike specs

Brand:
Model:
Model year: 2017
Frame Size: 16 – 17 inches (M)
Wheel Size: 27.5
BB Type: BB86/BB92
BB Width: 90mm

About the author

Converted

Converted

All conversions by Converted

About this conversion

We converted the bosses bike with the CYC Photon test test the Wedge battery and try out some Lekkie prototype parts.

Extra parts and modifications used for this conversion

Motor Fitment

Motor fitted the BB90 frame well. Juts needed 2x Lekkie 41mm Pressfit Cups and some washers. No modification of the ISCG tabs under the frame required for CYC Photon.

Battery

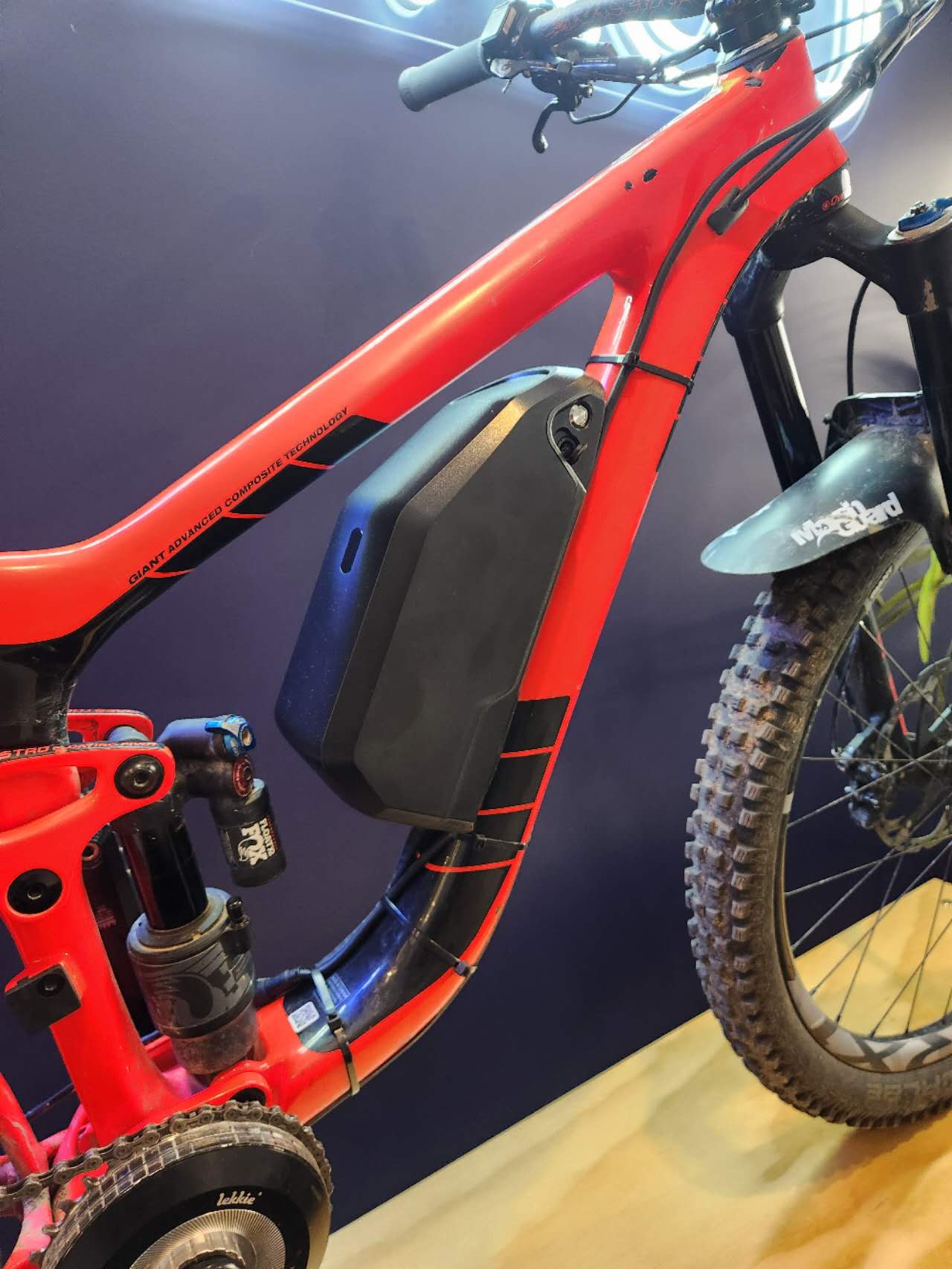

Wedge battery mounted to the top bottle cage mount. Had to add one extra mount up high. Only modification required.

Drivetrain

Lekkie Spline Up 34T

Extras

Lekkie Pacemaker Throttle, Lekkie Nucleus Cranks (prototype)
