Giant Trance 2008

CONVERSION RATING

**** Good (no modifications but some extra parts needed)

Share on facebook
SHARE ON FACEBOOK

Conversion specs

Motor:
TYPE:
System voltage: 48v
Battery type: Down tube Bottle holder mount

Bike specs

Brand:
Model:
Model year: 2008
Frame Size: 16 – 17 inches (M)
Wheel Size: 26
BB Type: ISO threaded internal
BB Width: 68mm

About the author

About this conversion

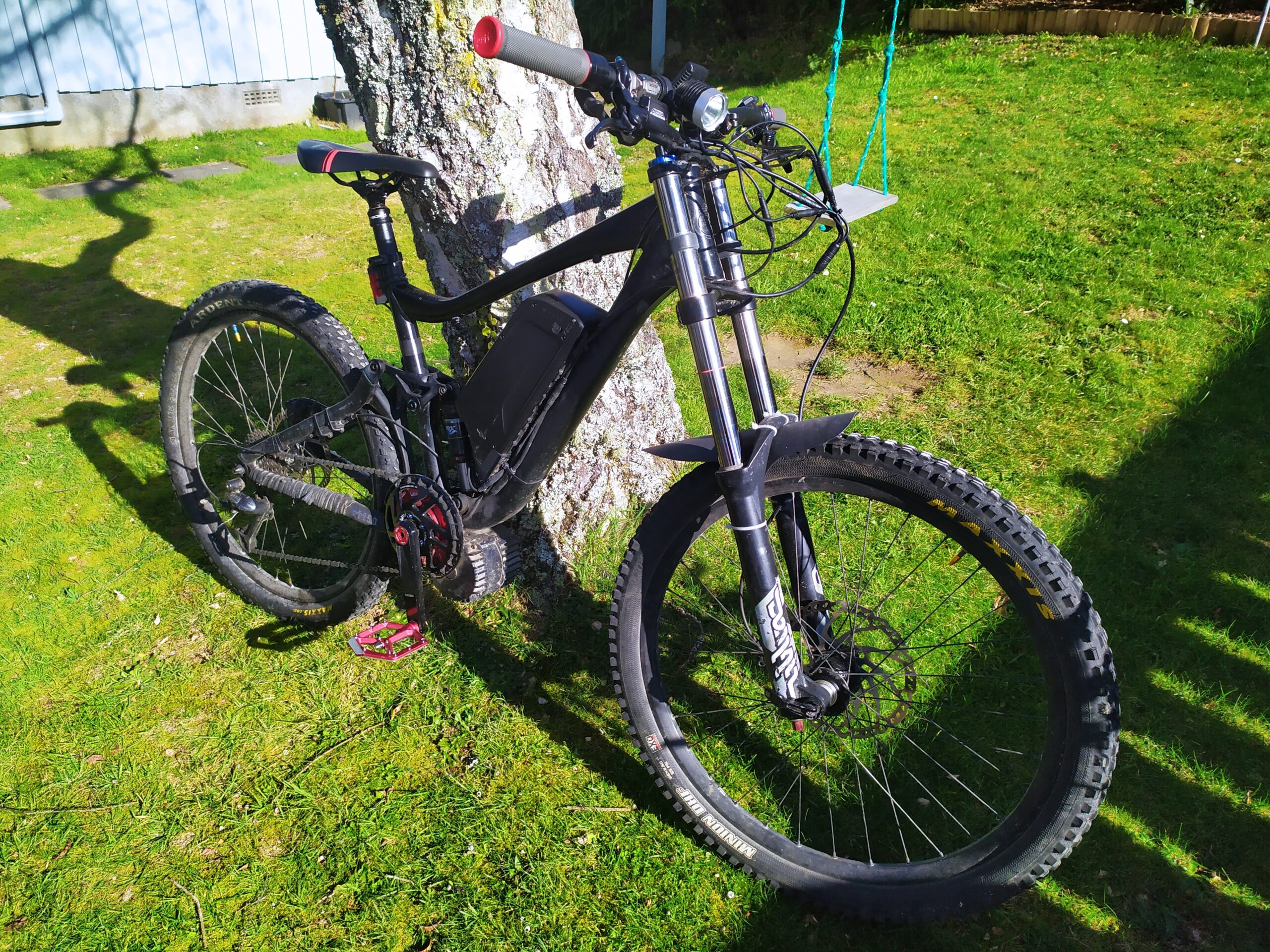

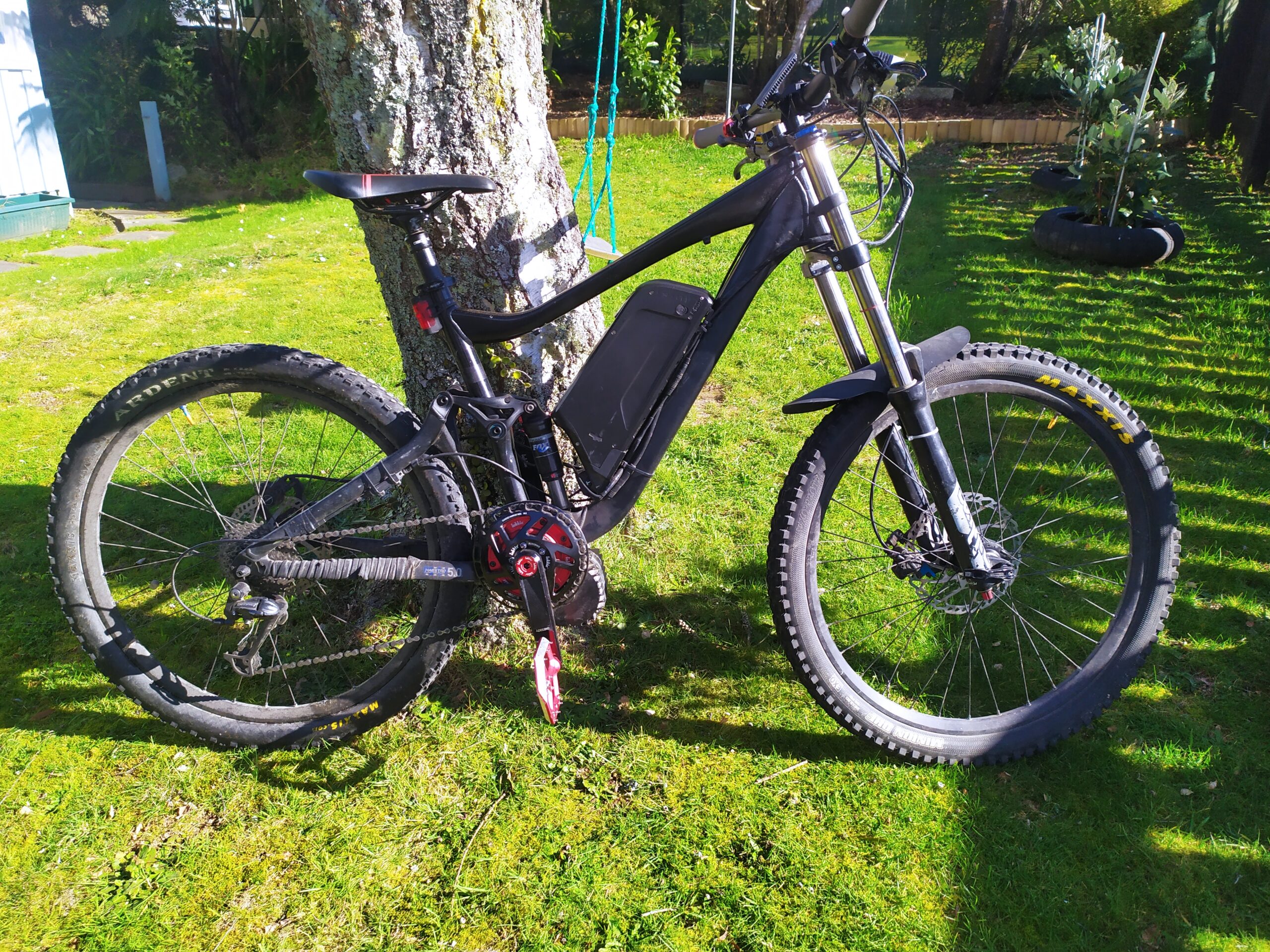

Great conversion, lightweight but strong aluminium frame. Medium frame is as small as you can go(with DA battery).

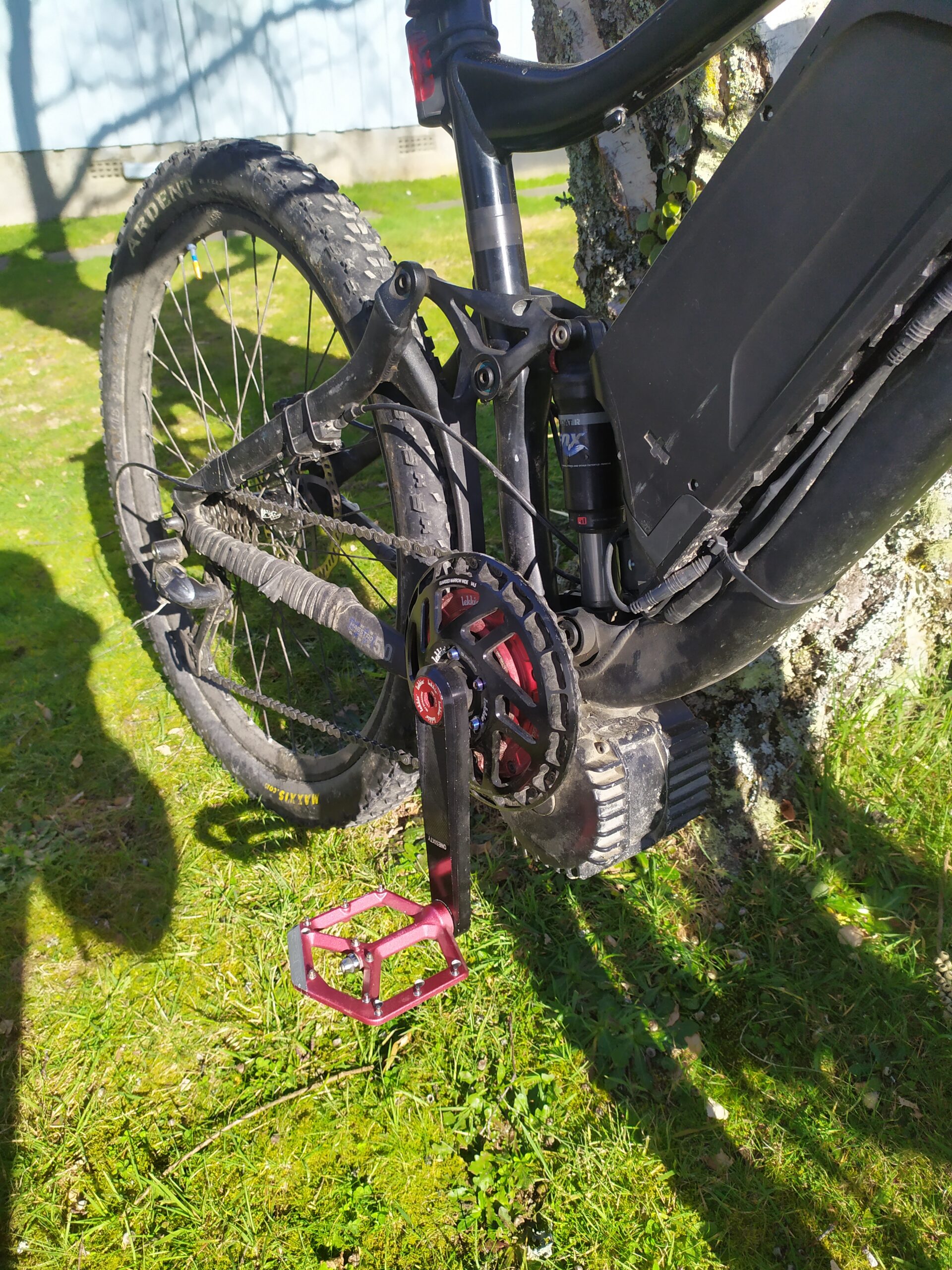

Motor does hang quite low due to the downtube design.

Running an older style DA battery.

Update, battery now a 52v, in Reention DP6 case which fits much better in the Med Frame

Extra parts and modifications used for this conversion

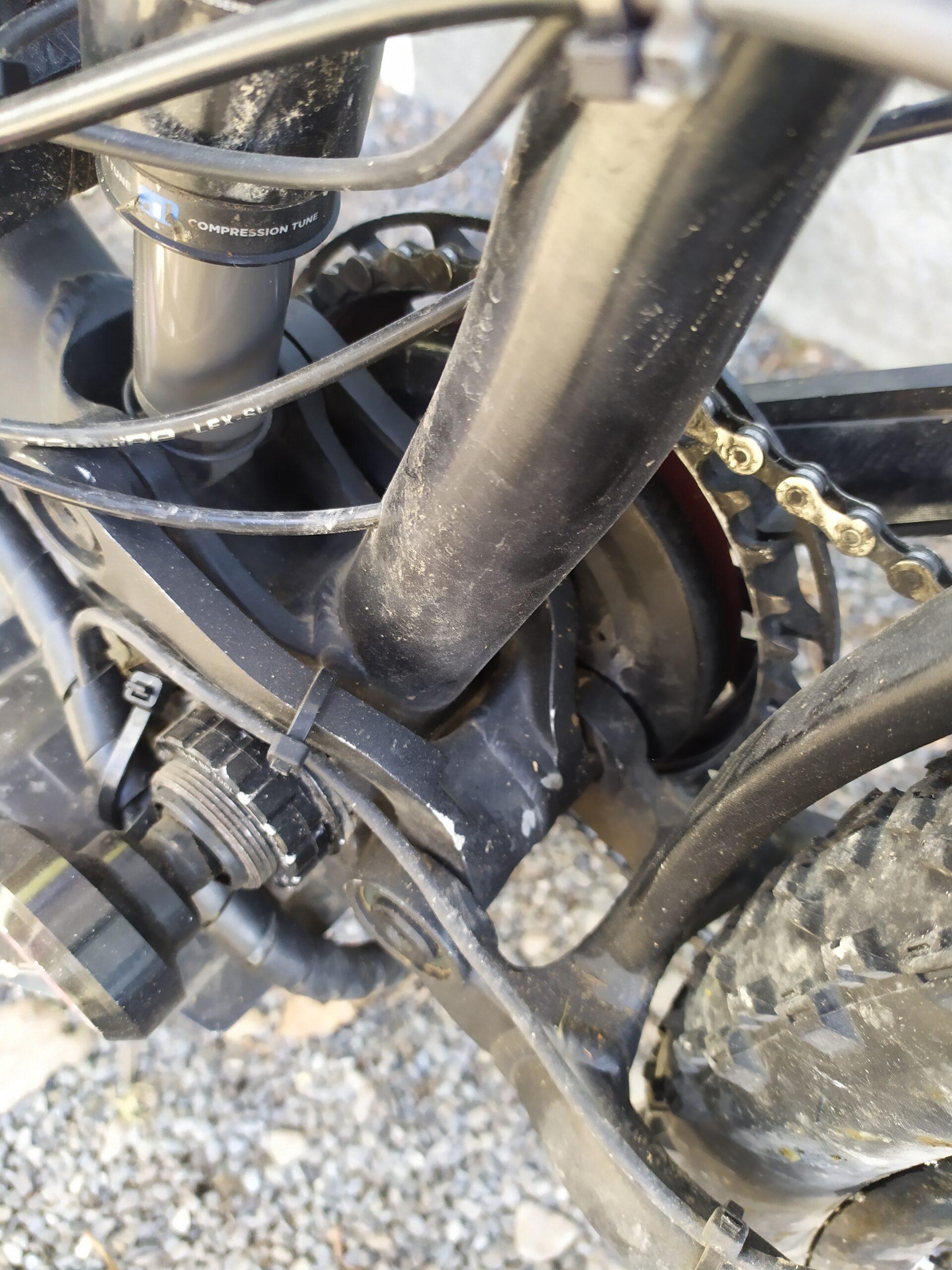

Needed to space the motor out 2mm(towards drive side) to clear the rear swingarm linkages. The rear shock needed to be turned around for battery clearance(would be fine in size L or larger frame).

Update: With Reention DP6 Battery rear shock can run in standard orientation.

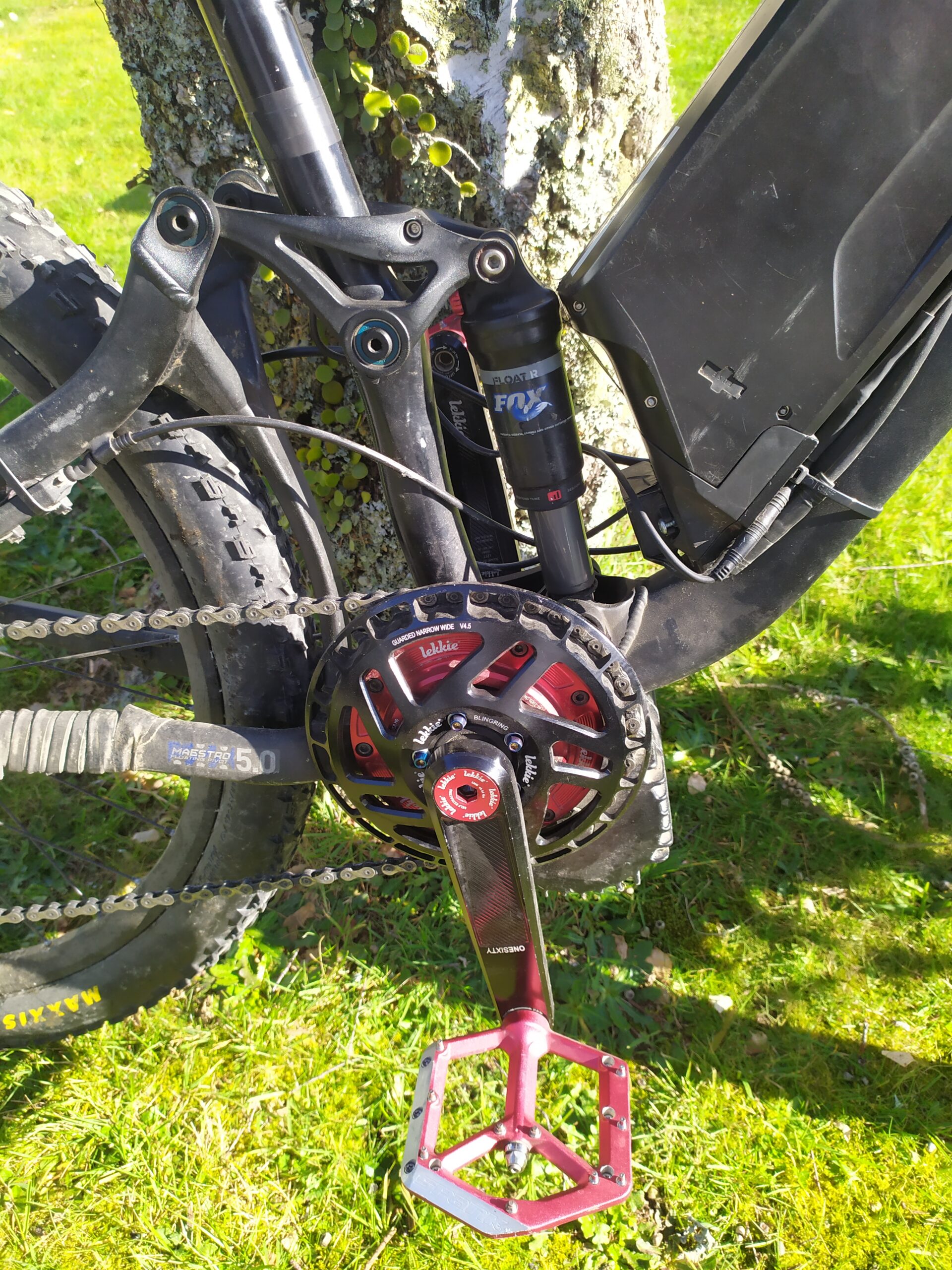

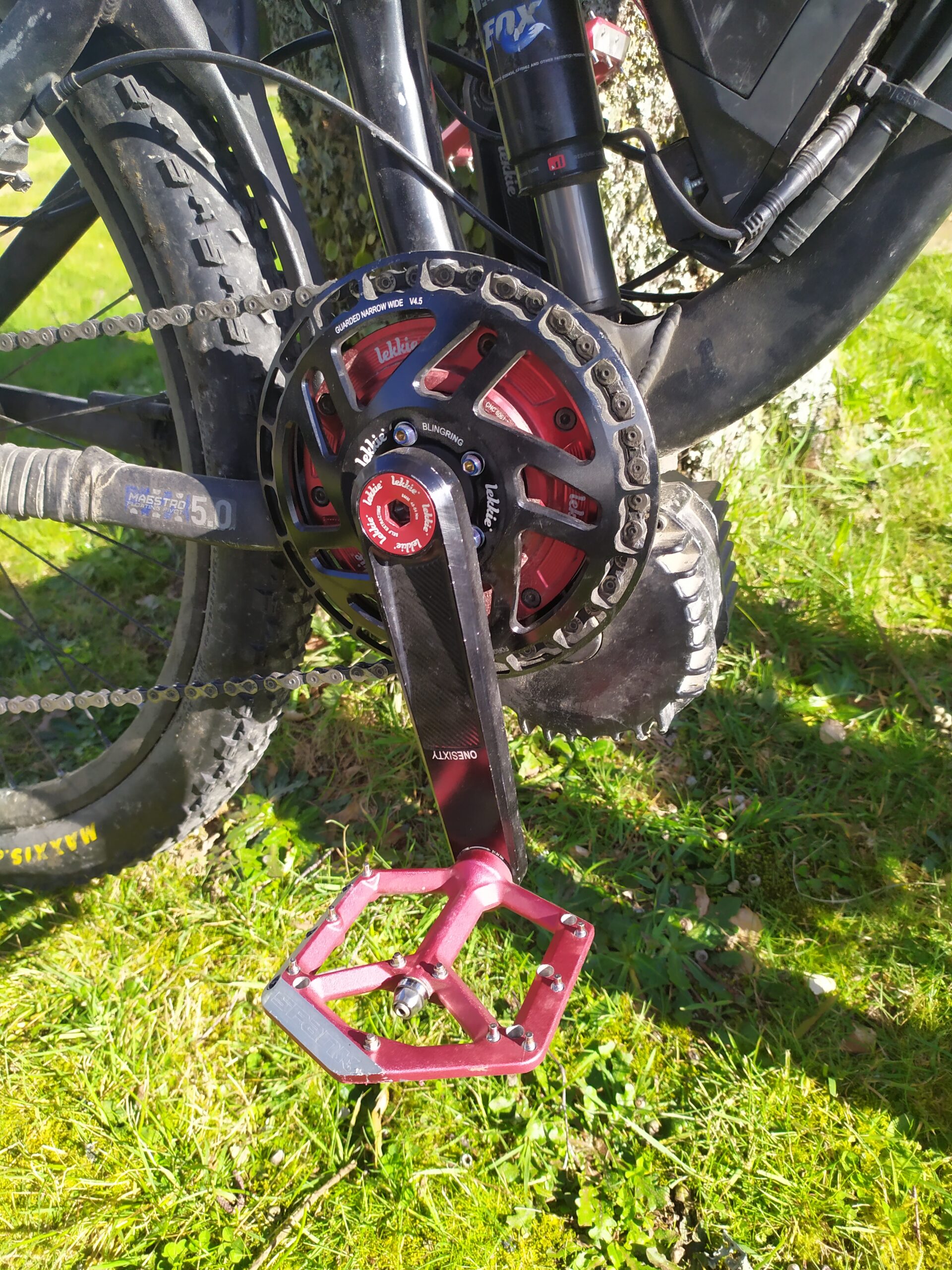

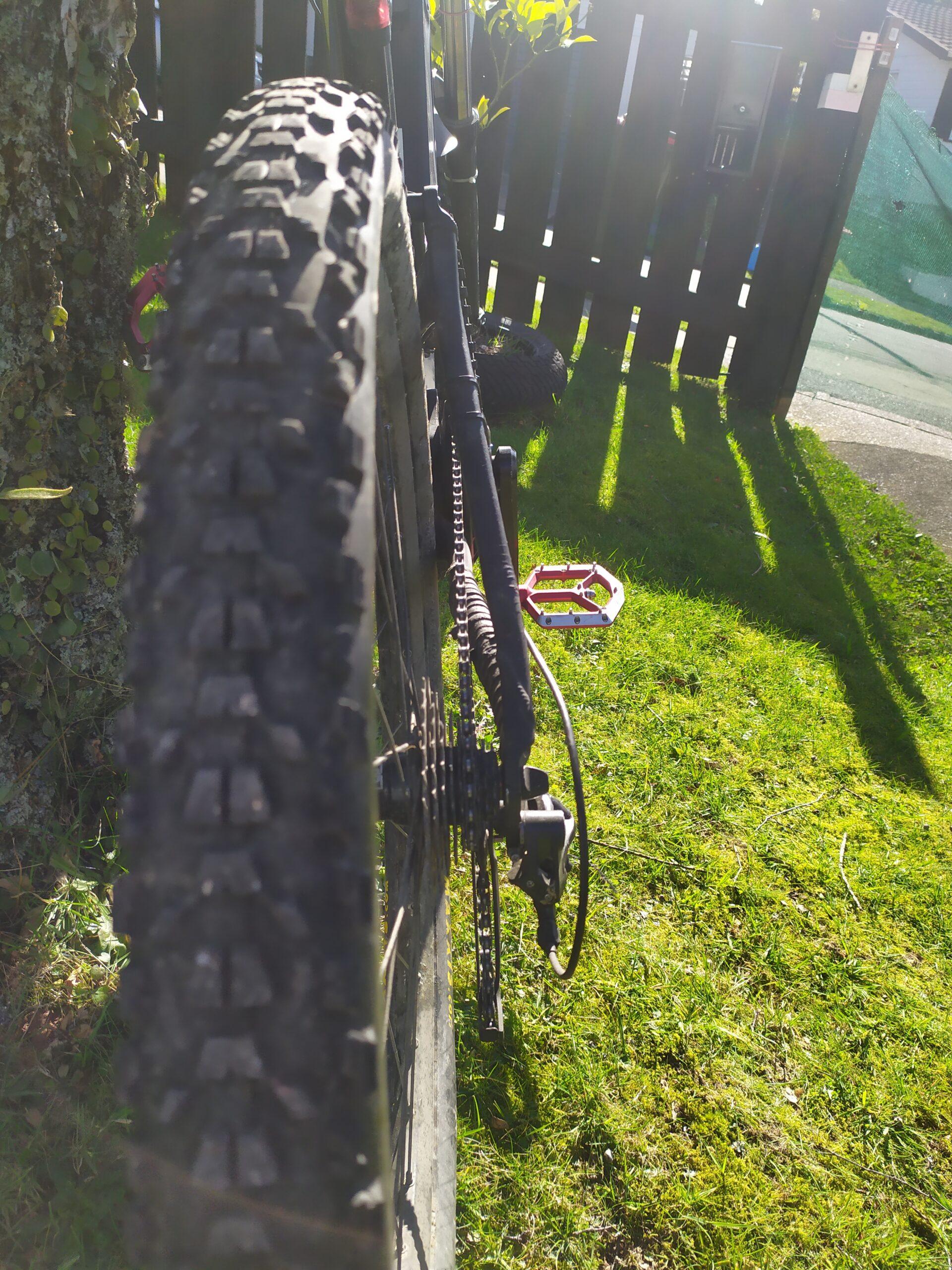

lekkie 40T Bling ring and cover to bring in the chainline to pretty much perfect alignment
