Quetzal Recumbent

CONVERSION RATING

*** Fair (light modifications and some extra parts needed)

Share on facebook
SHARE ON FACEBOOK

Conversion specs

Motor:
TYPE:
System voltage: 36v
Battery type: Down tube Bottle holder mount

Bike specs

Brand:
Model:
Model year: pre2000/unsure
Frame Size: unsure
Wheel Size: 20
BB Type: ISO threaded internal
BB Width: 68mm

About the author

About this conversion

Pretty straight forward conversion for a recumbent bike. Minor mod’s for the battery to fit and some custom parts made to help with display mounting, chain guiding and cable duct.

Extra parts and modifications used for this conversion

Motor Fitment

Straight forward motor fitment. Needed some extension cables but otherwise motor fitment was the easiest part of the build.

Battery Fitment

Added a couple of mounts to the frame to bolt the battery on. One battery extension cable required.

Drivetrain

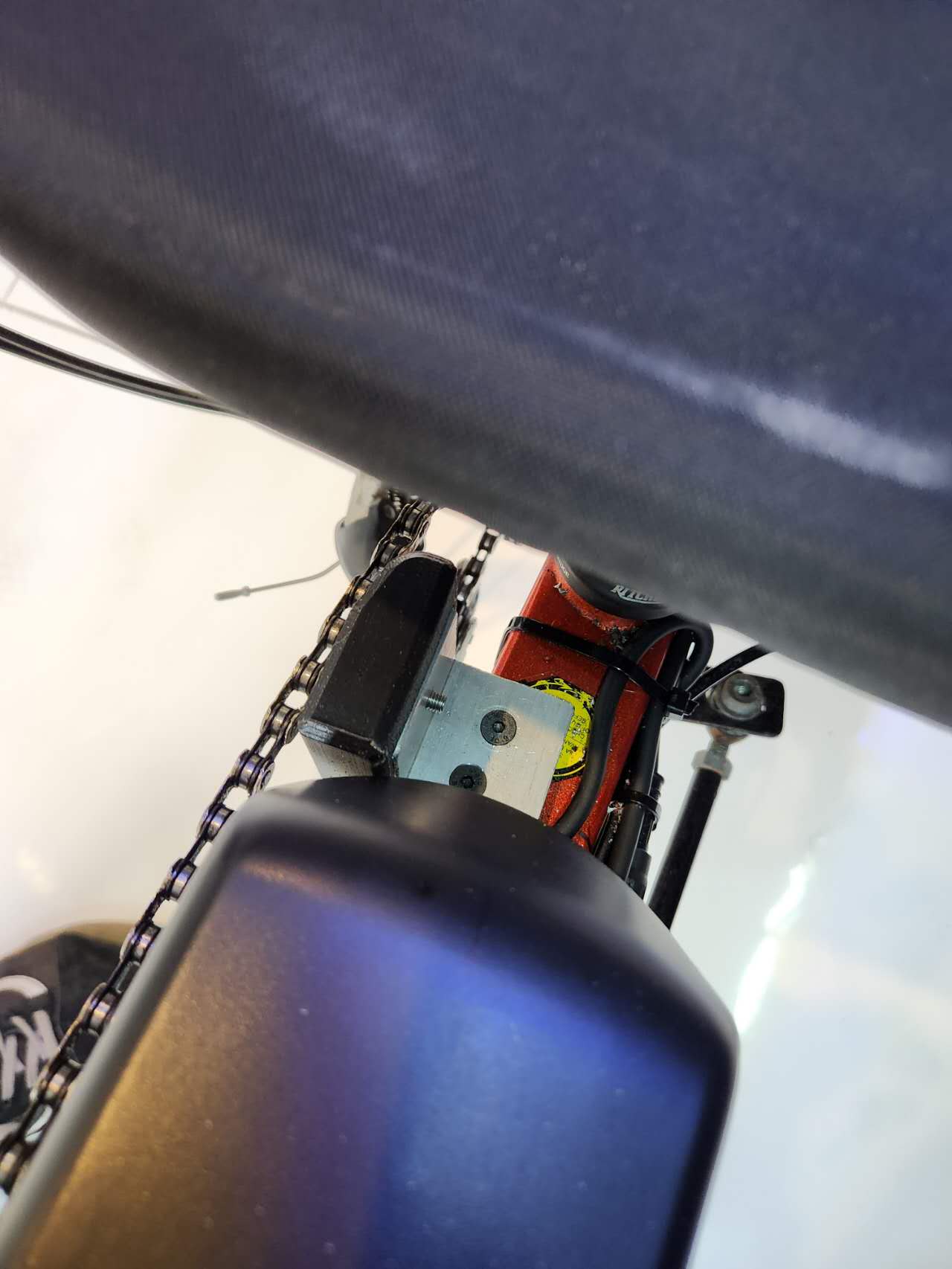

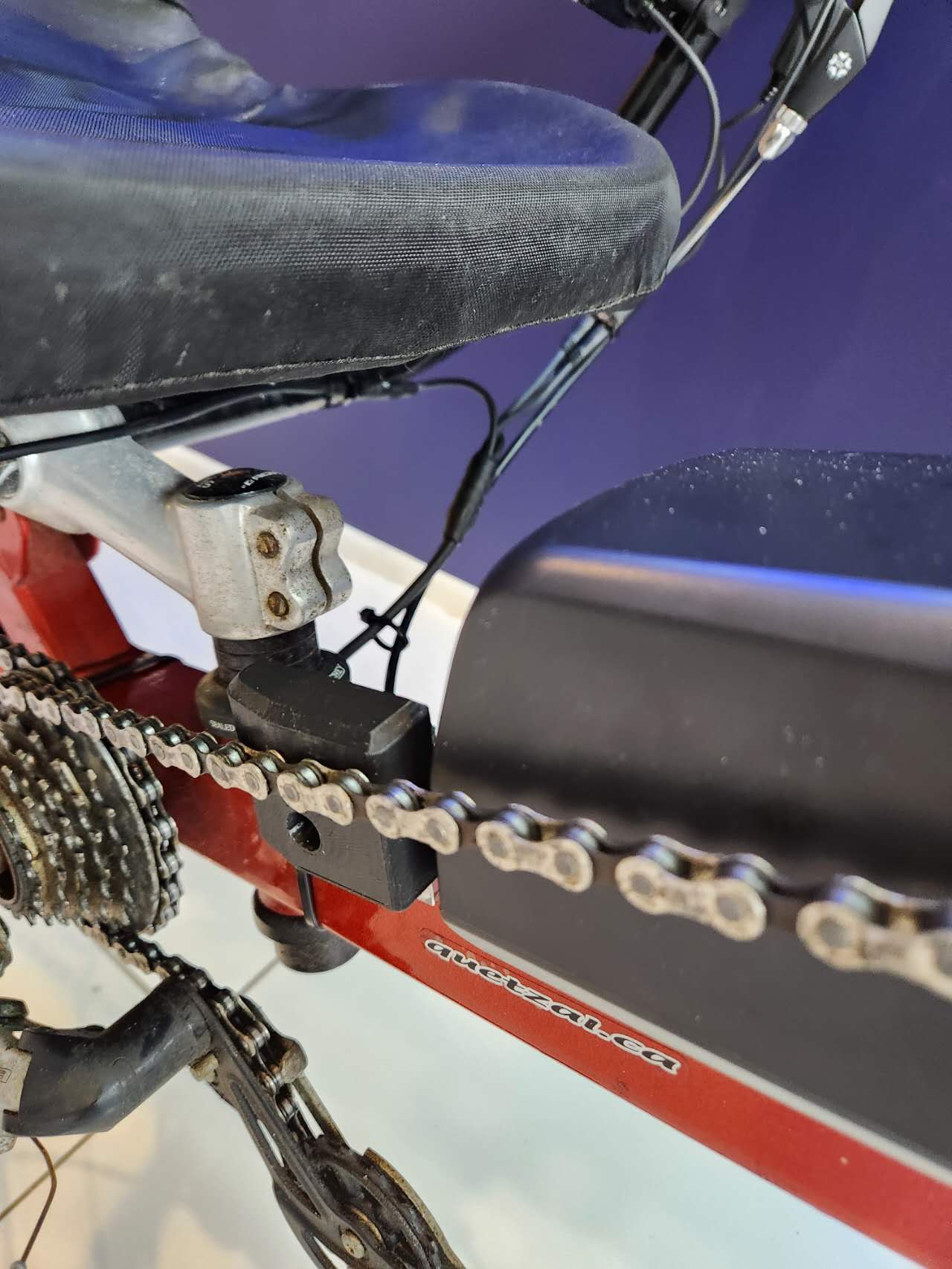

Stock sprocket fitted fine, just made a custom chain deflector to keep the chain off the battery.

Custom

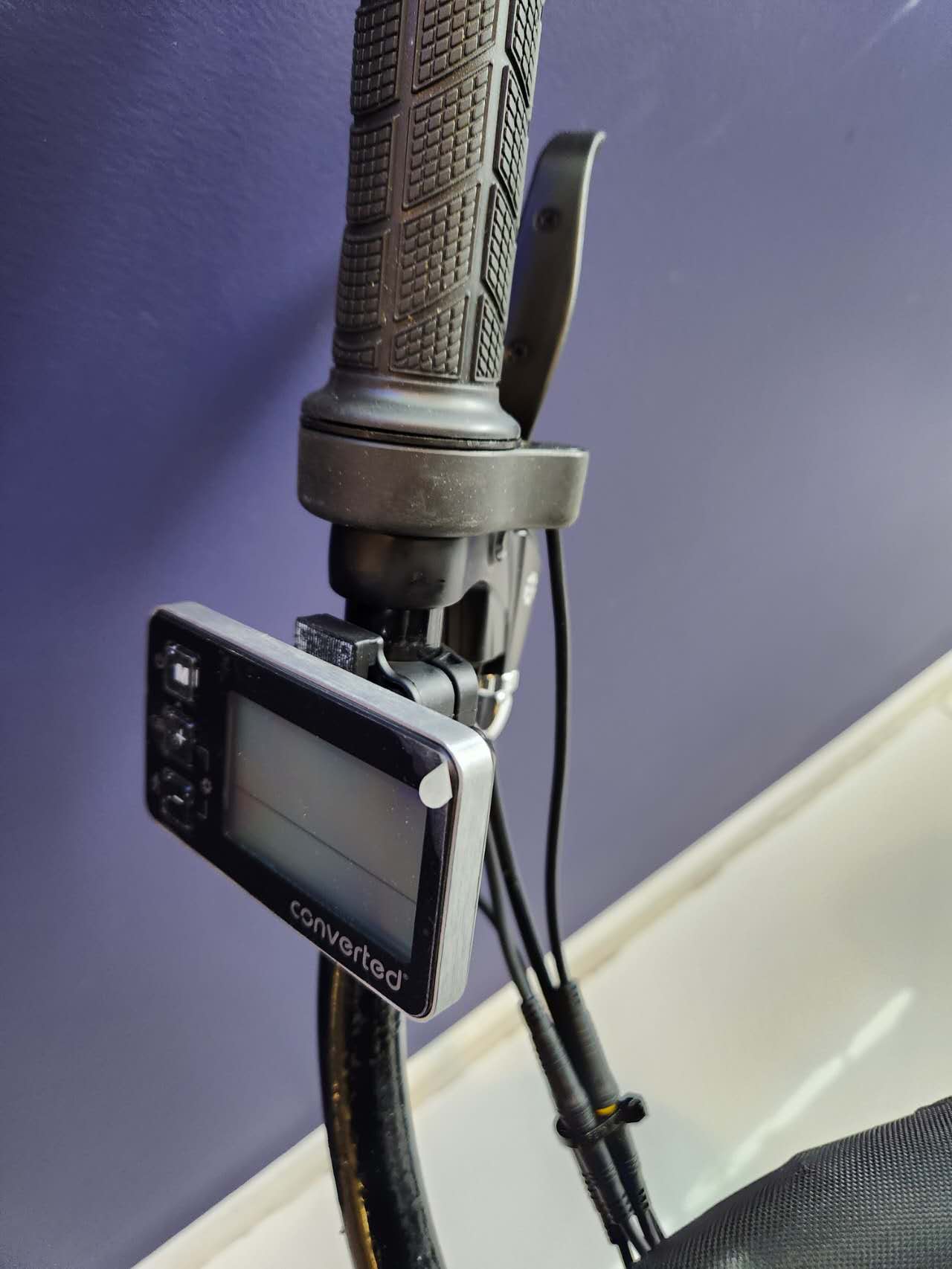

Made a custom 3D printed display bracket to change the orientation of the display. Also made a cable duct to hide the cable junctions. Custom chin deflector.



Image Gallery
